Polycarbonate overlays are a significant role-player in modern manufacturing and design and represent a durable and long-lasting solution for utilization in a wide range of applications. From electronics to machinery, polycarbonate overlays are functional and beautiful, which is the reason why industries have made them their choice. Here in this final guide, we will cover every aspect of polycarbonate overlays, from types to advantages and disadvantages and application. Moreover, we are going to list some of the frequently asked questions that will direct you on what decisions to make while selecting something for your respective requirement.

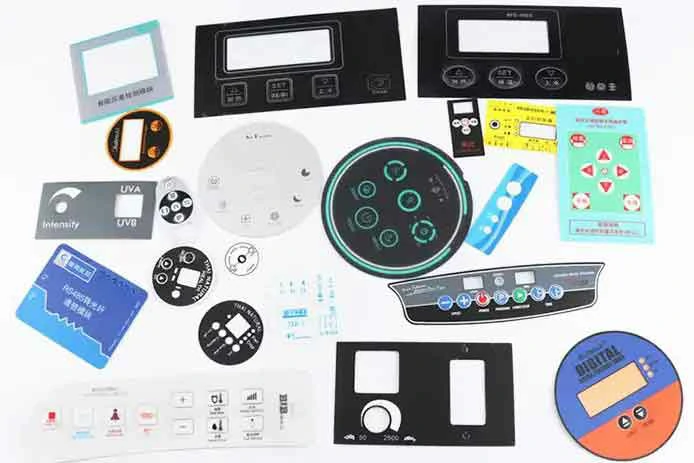

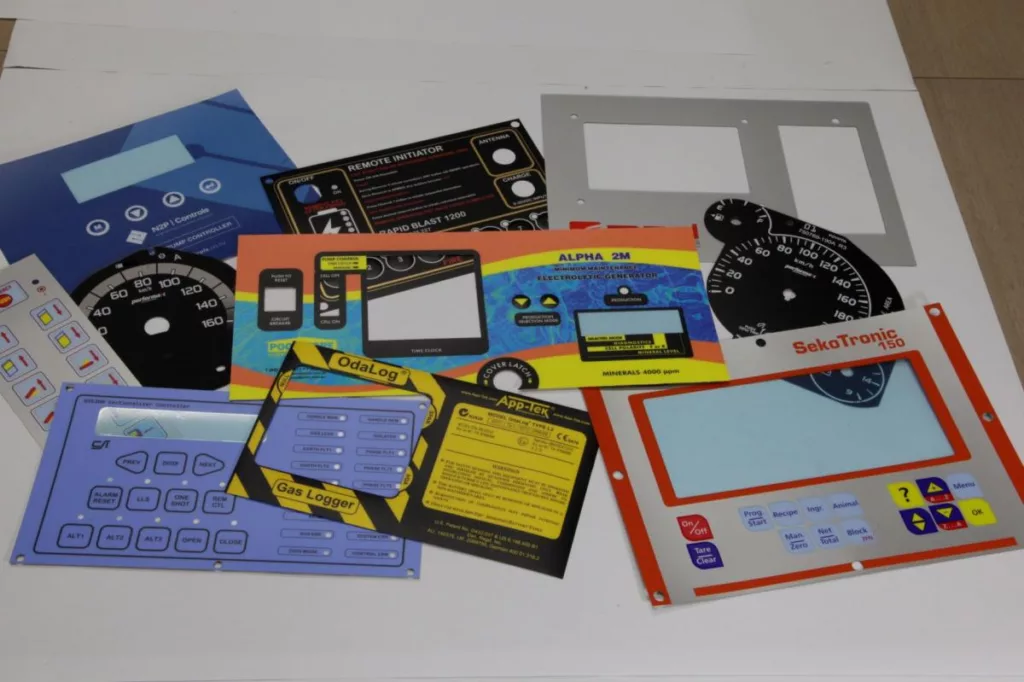

1. What is a Polycarbonate Overlay?
Polycarbonate overlay is a thin, strong sheet of polycarbonate thermoplastic polymer that is highly acclaimed for its optical clarity, impact resistance, and strength. The overlays are discovered to have varied uses as protective overlays or graphic overlays on products like membrane switches, display screens, and control panels. The overlay material is extremely chemical, UV, and scratch resistant and hence can be employed both indoors and outdoors.
Polycarbonate overlays have wide uses in electronics, automobile, aviation, and medical devices where strength and precision are the requirements. They can be printed with exclusive graphics, text, or symbols and can be readily integrated into user interfaces or brand elements.

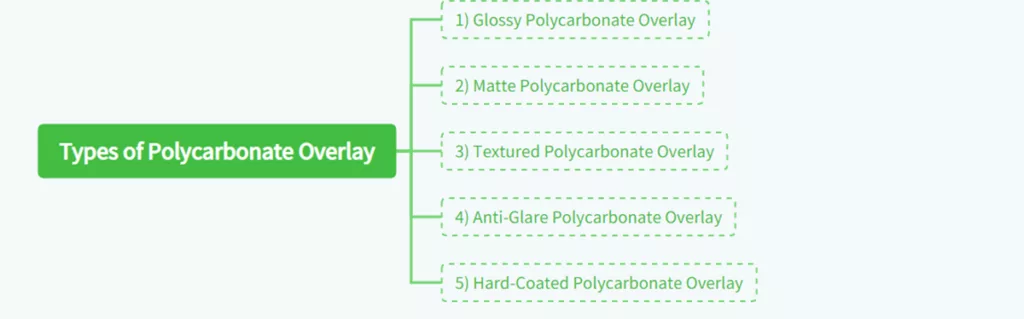

2. Types of Polycarbonate Overlay
Polycarbonate overlays have different forms, each with particular demands. Being aware of the different types can help you choose the right overlay for your use.
1) Glossy Polycarbonate Overlay
Polycarbonate overlays with gloss finish are soft to the touch, but shiny finishes make the product much more attractive. They are generally used in an application where appearance is a concern, like in consumer electronics or control panels with logos. Gloss finish provides a clean, modern look but may be more prone to fingerprints along with glare in certain lighting.
2) Matte Polycarbonate Overlay
Matte polycarbonate overlays offer a non-glare finish and are ideally used in environments where glare removal is required, i.e., outdoor use or very bright applications.This can either be in outdoor environments or in bright lights. The matte finish also offers a more tactile feel which may be very important in user interfaces or touch-sensitive systems. Matte overlays are less likely to collect fingerprints or smudges and are hence easily cleaned.
3) Textured Polycarbonate Overlay
Textured polycarbonate overlays yield a rough texture finish that allows the product to possess a feel component. A version of the overlay is sold that comes with a suitable industrial or abusive usage wherein durability and grip considerations rank supreme. This type of surface can also increase the legibility of printed lettering or graphics by minimizing the glares and reflections.
4) Anti-Glare Polycarbonate Overlay
Anti-glare polycarbonate overlays are also specifically designed to minimize reflections and improve readability in sunlight or bright environments. These are greatly utilized in automobile screens, street signs, and so forth where legibility is critical. Anti-glare coating disperses the light to make reading far more convenient even when directly exposed to the sun.
5) Hard-Coated Polycarbonate Overlay
Hard-coated polycarbonate overlays have a scratch-resistant secondary coating that will add longevity. Overlays are best for heavy duty or high-stress applications, such as in medical equipment, control panels, or heavy machinery. Hard coating provides an added barrier of protection that prevents the overlay from becoming clouded and non-functional in the long term.
3. Polycarbonate Overlay Manufacturing and Installation Process Guide
The esthetic form and functionality of a polycarbonate overlay depend heavily on design, printing, processing, and placement. Each manufacturing step is critical to long-term longevity, esthetic value, and patient satisfaction. This manual outlines the process from prototype to installation.
1. Prototyping and Design Confirmation
Every successful overlay project begins with careful design validation. During the prototyping stage, designers confirm the layout, colors, and functional elements of the overlay. This includes testing transparency for windows, tactile feel for buttons, and alignment with backlighting or control components.
A prototype or proof allows both the manufacturer and customer to be able to test real performance before mass production. It can be adjusted to alter the material’s texture, print orientation, or thickness. It should also be ensured that the artwork file is in the correct color mode, typically Pantone or CMYK, in order to produce the correct color match upon printing.
2. Printing Methods (Screen Printing and UV Digital Printing)
Polycarbonate overlays can be printed using two major techniques: screen printing and digital UV printing.
Screen printing is ideal for solid colors, opaque areas, and high-volume orders. Screen printing delivers rich, deep colors and excellent color consistency. All the colors are printed layerwise on the back of the polycarbonate film to prevent the ink from wear and chemicals.
UV digital printing is most suitable for prototypes or complex designs with gradients, fine graphics, or various information. It eliminates the need for printing screens, which leads to faster setup and lower costs for small runs.
The two procedures can also be combined. Screen printing can be utilized for color blocks and UV printing for logos or for small text to be both efficient and accurate.
3. Surface Treatment and Hard-Coating Application
Surface treatment is an important factor that determines the use and durability of the overlay. Hard-coating technology applies a transparent protective coating onto the surface of the polycarbonate sheet to enhance scratch resistance, optical clarity, and resistance to chemicals or UV radiation.
There are a number of finish options available, such as gloss, matte, anti-glare, or texture coatings. The appropriate finish must be selected with consideration for lighting, use, and touch sensation desired.
Evenness is of utmost importance during coating. Inconsistent layers create optical distortion or color shifting. On curing, the coated sheets are checked for transparency, gloss level, and surface defects.
4. Die-Cutting, Lamination, and Adhesive Bonding
After coating and printing, the overlays are die-cut to the desired form. Die-cutting offers clean and sharp edges, especially in the case of windows, display openings, or critical areas. Laser cutting can be used in cutting complex geometries with high precision demands.
Once cut, overlays are laminated using adhesives. Pressure-sensitive adhesives such as 3M or Tesa can also be utilized to bond the overlay onto the device surface. The adhesive coating needs to be coated evenly so that air pockets or wrinkles are avoided.
If the overlay is for backlighting, optical adhesives of high transparency are chosen for even light transmission.
Before packaging, the overlays are inspected for the second time for precision of alignment, coverage of the adhesive, and the cleanliness of the surfaces. Quality consistency at this stage affects total end installation performance.
5. On-Site Installation Tips and Maintenance Guidelines
Proper installation guarantees that the overlay is held firmly in place and perfectly visually throughout its working lifetime.
Clean, dry, dust- or oil-free mounting surface is necessary before applying. Contamination can destroy adhesion. Wipe the surface clean using lint-free cloths and isopropyl alcohol where possible.
Apply the overlay by starting at one edge and rolling progressively towards the other to remove air bubbles. A squeegee or gentle roller can be utilized for an even bond without surface damage. Installation of big overlays needs to be done in a climate-controlled environment to prevent expansion or contraction on account of adhesion.
It is simple to keep clean. Gently wash the overlay with soap and water on a soft microfiber cloth. Never use aggressive solvents, rough chemicals, or alcohol wipes that will ruin the coat. Regular checking for edge lift or color discoloring will catch things early and maintain the professional appearance.
From design approval through final installation, each phase in manufacture and assembly determines the performance and reliability of a polycarbonate overlay. Careful attention to print quality, coating superiority, and method of installation ensures the final product delivers functional longevity and visual superiority. A professionally built overlay not only protects the device underneath but also is friendly to enhanced user interaction and brand image in the long run.

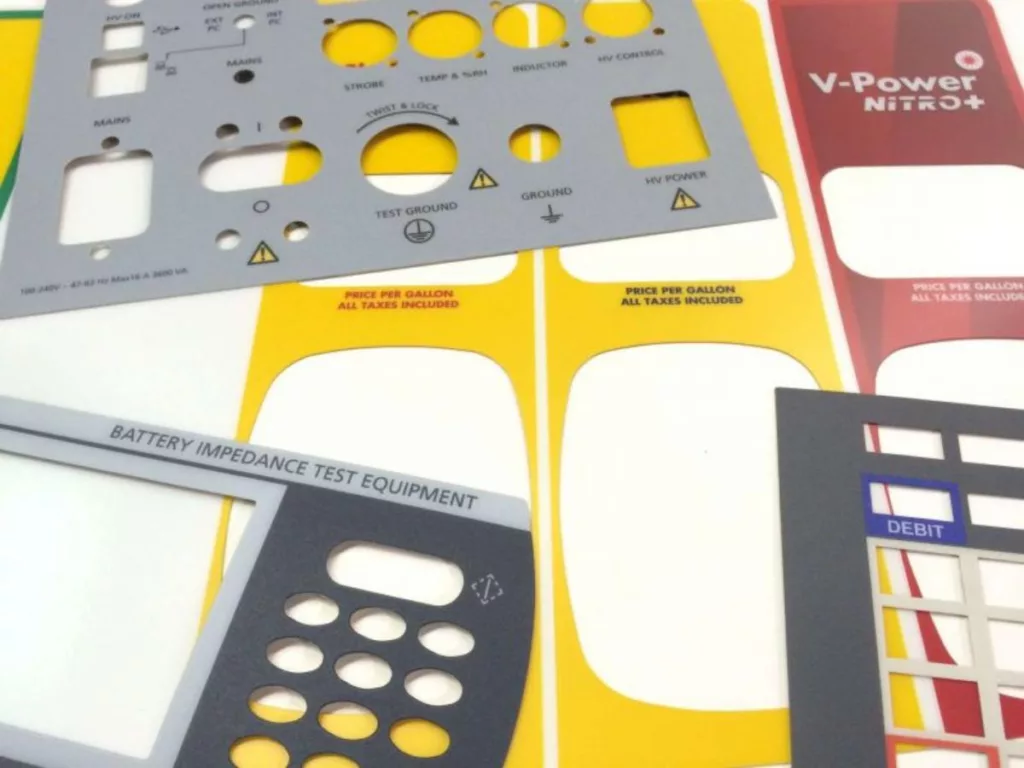

4. Advantages of Polycarbonate Overlay
Polycarbonate overlays possess an array of benefits that render them a favorite option in the majority of industries. Some of their most significant benefits include:
1) Durability
One of the key benefits of polycarbonate overlays is that they are very resistant. Polycarbonate is so impact-resistant that it’s the perfect choice for applications involving products that require long-term performance. In outdoor signage, control panels, or medical equipment, polycarbonate overlays resist harsh handling without cracking and shattering.
2) Clarity and Transparency
Polycarbonate overlays offer higher optical clarity, which is suitable for application in scenarios where clearness is pertinent. The material can pass light without distortion to keep displays, graphics, or text legible and uncovered. This makes it an extensively applied substance in touchscreen solutions, control screens, and display panels.
3) Chemical and UV Resistance
Polycarbonate overlays are chemically neutral and thus are the best one to use in any situation where cleanser, oil, or solvent touch is prevalent. Polycarbonate has inherent UV resistance, which acts to prevent yellowing or degrading when subject to ultraviolet light exposure. This makes polycarbonate a great product to use for exterior applications such as signage or auto displays.
4) Customizability
Polycarbonate overlays may be easily designed to meet specific design requirements. They can be printed with designated graphics, logos, or messages and perfectly blended into user interfaces or brand factors. In addition, polycarbonate overlays can be die-cut into varied shapes and sizes and therefore may be applied to multiple uses.
5) Lightweight
Even though it is so strong and durable, polycarbonate is light, hence easy to work and install. It is worth most in application in places where lightness counts, such as aerospace and car industries.
5. Drawbacks of Polycarbonate Overlay
While overlays of polycarbonate possess many advantages, there are some potential drawbacks to consider:
1) Cost
Polycarbonate overlays are more expensive than other alternatives, such as polyester or acrylic. They are well worth the money because they have greater performance characteristics and longevity, light transmittance, and chemical resistance and impact resistance than other products. Despite the cost, the long-term value of a polycarbonate overlay generally pays off for the initial investment, especially where durability in an application is essential.
2) Susceptibility to Scratches
Although extremely impact-resistant, polycarbonate is scratch-sensitive compared to other materials. Smooth polycarbonate overlays, indeed, will scratch or scuff with ease.
But scratch resistance can cut back on this issue through the use of hard-coated polycarbonate overlays.
3) Limited Temperature Resistance
Polycarbonate overlays are not as thermally stable as glass or some acrylics. Polycarbonate will distort or will eventually degrade on very hot heat settings. If extreme heat exposure is necessary for a specific application, another product would be more suitable.
6. How to Choose Polycarbonate Overlay?
Selecting the best polycarbonate overlay involves more than familiarizing oneself with the material. The decision will need to be made on how the overlay performs in its own environment, what textural and aesthetic impact you wish to achieve, and the cost versus lifespan balance. The rules that follow can fit as a point of departure for creating a professional and informed decision.
1. Environmental Analysis (Temperature, UV, Chemical Exposure, and Mechanical Impact)
The first step in the choice of an overlay is the analysis of the conditions it will be subjected to when in use.
If they are installed inside in a stationary setup, plain polycarbonate sheets without thick coatings may suffice. Yet for outdoor or industrial applications, overlays are exposed to temperature changes, sunlight, water, and abrasion.
For hot or moist conditions, choose overlays having a hard-coated or UV-stable top surface. This will withstand discoloration and stay clear. For chemical-containing environments, such as laboratories or health facilities, use alcohol-, cleaning solution-, or disinfectant-resistant overlays.
When mechanical stress or impact will be imposed, select thicker products that have good elasticity to avoid cracking or surface deformation. Matching overlay durability to the actual operating environment ensures consistent performance over its service life.
2. Visual and Tactile Requirements (Texture, Finish, and Brand Identity)
As an overlay is often the users’ first touch and sight, its surface finish contributes significantly to how the product is perceived.
- A glossy finish gives a modern, glass-like appearance suitable for digital displays or backlit indicators.
- A matte or texture finish reduces glare and fingerprints, and is suitable for control panels or out-of-door instruments.
- Unique textures for cereals can provide grip, depth, or brand personality, especially if combined with back-printed logos or metallic coatings.
When choosing an overlay design, take into account the emotional interaction it elicits with the user. A uniform tone of color, position of logo, and surface texture can increase brand recognition and improve overall experience.
3. Installation and Surface Compatibility
Overlay performance is also a function of its bonding to the surface underneath. The substrate material may be metal, glass, painted plastic, or composite, and each requires an adequate adhesive or lamination process.
Before production in quantity, always conduct an adhesion test. Check that there are no bubbles, edge lifting, or non-uniform bonding after temperature cycling. If the overlay will be placed on curved or flex panels, more thin films of polycarbonate are advised since they will fit more easily without wrinkling. For back-printed overlays, ensure that the ink and adhesive do not chemically react, which could cause cloudiness or delamination over time.
4. Thickness, Material, Coating, and Lifespan Analysis
Polycarbonate overlays are available in an extremely wide range of thicknesses from 0.125 up to 0.75 millimeters. Thinner films are suitable for keypads or membrane switches requiring tactile feedback, while thicker sheets provide more rigidity and protection for front panels.
The surface coating plays a part in optimizing service life. Hard coatings improve scratch resistance and optical clarity, while anti-glare coatings allow better visibility in bright light. For those products exposed to sunlight, UV-stable coatings prevent yellowing and extend lifespan.
The guideline is to achieve a compromise between flexibility, strength, and protection. With the right mix, the overlay will maintain appearance and function for years despite continuous use.
5. Budget and Cost-Effectiveness Factors
Price must be evaluated in conjunction with long-term performance rather than as a stand-alone factor. A slightly higher priced overlay may reflect superior coatings, more durable adhesives, or tighter manufacturing tolerances, which reduce future maintenance and replacement costs.
When budgeting a project, consider not only the raw material price but also secondary expenses such as tooling, printing setup, and inspection for quality. At high-volume manufacturing, the per-unit cost is reduced significantly, making it possible to utilize high-quality materials at less expense.
If the application demands durability and brand presentation, an investment in a better-quality overlay generally offers more value. For short-term use or temporary prototypes, an economical standard polycarbonate film may suffice.
Choosing a suitable polycarbonate overlay is a thoughtful balance of environment, appearance, function, and cost. Understanding how these factors interplay allows designers and engineers to make precise choices that meet both aesthetic and technical requirements. A properly selected overlay not only protects the elements under it but also optimizes user experience and brand image for years to come.
7. Polycarbonate Overlay Quality Inspection and Maintenance
Quality and maintenance inspection is required to ensure that polycarbonate overlays maintain their performance, appearance, and durability during their service life. An effective testing program ensures product quality before shipping, and routine maintenance after installation works to optimize the service life of the overlay.
1. Factory Inspection
Before shipping, every batch of overlays should undergo a rigorous inspection for mechanical strength, surface evenness, and visual quality. The adhesion test determines the extent to which the adhesive and printed layer adhere to the polycarbonate sheet so that the ink does not fade or peel with usage. The impact test measures the overlay’s ability to withstand drops or external pressures without cracking or deforming, which is particularly important for devices exposed to vibration or repeated impact.
Scratch resistance testing measures the durability of the surface coating using controlled abrasive tools. This determines whether the hard coating will hold up to typical wear and tear such as cleaning or button contact. Finally, the UV accelerated aging test subjects the overlay to artificial sunlight for extended periods to assess color stability and clarity. Overlays that withstand this test enjoy good clarity and gloss even after years of outdoor exposure.
2. Post-Installation Inspection
Following installation, overlays need to be field-inspected for adhesion and appearance as intended design. Check for good adhesion with no edge curling or lifting, since poor surface preparation will result in early peeling.
Inspect for air bubbles or dust entrapment, which affect not just appearance but also adhesion strength. Inspect color uniformity and optical register between different components, especially in lighted panels where even slight misalignment affects readability. Lastly, check for scratches or smudges that were sustained during installation. Early detection allows for easy replacement or polishing before the issue worsens.
3. Maintenance Instructions
Proper maintenance is also a primary consideration for guaranteeing overlay performance. Clean the surface periodically with mild soap and water and a soft, non-abrasive cloth. Avoid harsh solvents, alcohol, or abrasive detergents that will degrade the coating or cause discoloration.
Operators also ought not to utilize sharp objects or rough tools that have the potential to scratch the surface. For control panels exposed to chemicals or dust, regular inspection allows identification of aging signs such as yellowing, edge lifting, or gloss loss.
With a simple cleaning schedule and consideration to environmental exposure, the overlay can remain clear and functional for several years without incurring the cost of replacement.

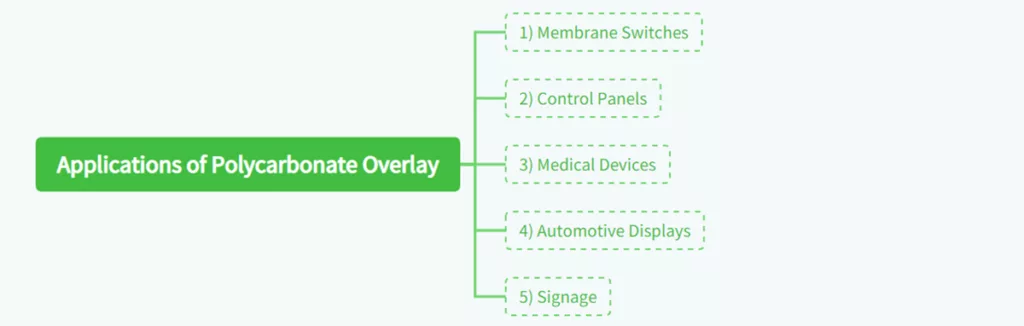

8. Applications of Polycarbonate Overlay
Polycarbonate overlays have applications in many industries and uses, some of which are:

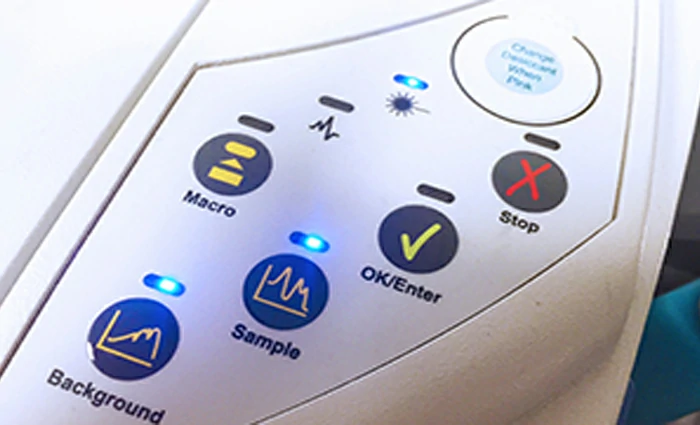

1) Membrane Switches
Polycarbonate overlays are commonly utilized in membrane switches, where the overlay serves as the uppermost layer of the switch assembly. The overlay remains on the surface and allows for passage of light and viewing of printed text or graphics.
2) Control Panels
Consumer electronics and industrial control panels frequently utilize polycarbonate overlays to encapsulate the inner mechanisms while keeping the interface open and functional. They may be printed with complex graphics, symbols, or text to enhance usability.
3) Medical Devices
Polycarbonate overlays are applied heavily with medical devices because they are chemically resistant, durable, and easy to sterilize. They cover touchscreens, control panels, and interfaces, shielding the device from tampering and making cleaning easier.
4) Automotive Displays
Polycarbonate overlays are utilized in dashboard displays, control panels, and other interior automotive components. They are well-suited for applications in automobiles, where they will be exposed to sunlight and repeated handling, because of their durability and UV resistance.
5) Signage
Polycarbonate overlays are usually put on exterior signs since they are resistant to impact, weather, and UV light. The overlays protect the printed graphics from fading or becoming damaged so that the sign remains clear and readable in the long run.
9. Polycarbonate Overlay Cost and Lifespan Consideration
When looking at polycarbonate overlays, cost cannot be viewed as an isolated number but one in the framework of a life-cycle calculation. The true worth of an overlay lies in its ability to balance initial investment, durability, and replacement frequency over time.
1. Initial Cost vs. Long-Term Replacement Cost
Overlays with high-end materials or specialty coatings may seem more expensive at first glance. But they offer enhanced scratch, chemical, and UV resistance that reduces replacement and labor expenses for maintenance.
Cheaper overlays can appear economical at the outset but might degrade faster under harsh conditions, with additional expense in reprinting, reinstalling, or downtime. When calculating cost-effectiveness, always consider both material and operational costs over the total expected service life.
2. Factors Influencing Lifespan
- Various environmental and operational factors influence the life of a polycarbonate overlay.
- UV exposure reduces clarity over time and can yellow the coating if the coating is not stabilized.
- Chemical exposure to alcohol or cleaning solutions can break down adhesives and discolor printed layers.
- Temperature extremes can cause micro-cracks or warping, especially when overlays are exposed outdoors or in very close proximity to heat sources.
- Finally, the quality of installation has a direct impact on durability. Poor surface preparation or improper alignment can lead to early delamination or edge lifting even if the material used is of high quality.
3. ROI Calculation: Durability vs. Low-Cost Materials
Calculating return on investment (ROI) enables us to determine which overlay option offers the best value in the long run. More durable overlays typically have two- to three-times the life of low-cost materials, meaning reduced replacement rates and more consistency in performance. In markets where brand image and dependability rank first, i.e., medical, automotive, or industrial control panels, a quality overlay also reduces service downtime as well as warranty claims.
By comparing the total ownership, installation, and maintenance cost, it often becomes evident that a durable and well-coated polycarbonate overlay provides the highest return. Investing in good material initially gives a longer lifespan, lower replacement cost, and a better professional product look during its operational life.
10. Polycarbonate Overlay Supplier Selection and Procurement Guidelines
The selection of the proper polycarbonate overlay supplier is among the key steps that directly affect product quality, delivery efficiency, and the success of long-term collaboration. A seasoned producer does more than simply produce overlays; they also provide technical advice, ensure consistency, and help optimize costs throughout the manufacturing process. The following guidelines offer a structured approach to qualifying and working with suppliers.
1. Define Project Requirements Before Sourcing
Before contacting suppliers, establish your product specifications and applications. Establish the application environment, i.e., indoor, outdoor, or medical application, since these determine material grade, coating, and adhesive strength.
Specify design requirements: color, transparency, thickness, and texture. If branding features or backlighting are to be included in the overlay, provide detailed artwork and functional drawings. Clear requirements not only allow suppliers to quote accurately but also reduce design discrepancies further down the production process.
2. Evaluate Manufacturing Capabilities
The qualified supplier should possess an in-house printing, coating, and die-cutting facility rather than subcontracting critical steps. This enables better quality and lead time control. When evaluating a potential manufacturer, consider the following questions:
- Do they provide both screen print and UV digital print for both small and large batch sizes?
- Do they possess automated hard-coating and lamination equipment for reproducible results?
- Can they perform adhesion, UV aging, and impact testing in-house for performance assurance?
- Do they have controlled environments for clean printing and coating operations?
Suppliers with complete production lines can respond faster to customization requirements and provide consistent quality levels.
3. Verify Quality Control and Certification
Trustworthy suppliers follow formal quality management processes and can provide documentation to support compliance. Look for certifications such as ISO 9001 for manufacturing quality and RoHS or REACH for material safety. Ask to review recent test reports or inspection records, specifically for adhesion strength, scratch resistance, and weathering ability. A quality manufacturer will be transparent in their quality inspection procedure and willing to provide test reports or provide sample overlays for evaluation.
4. Review Samples and Past Projects
Samples are the easiest method to verify supplier quality. Inspect the overlay for color consistency, smoothness of coating, and accuracy of print. Press or flex the sample gently to test for mechanical resilience, and inspect the clarity of see-through windows where appropriate.
Where possible, inspect samples of the supplier’s previous work in your market, i.e., overlays for control panels, medical devices, or industrial devices. Experience in your market translates to more familiarity with performance requirements and regulatory expectations.
5. Compare Quotation Details and Delivery Terms
While comparing the prices, pay attention to the complete quotation information rather than the unit price only. The material type, coating, adhesive brand, thickness, printing process, packaging, and delivery time should be stated in a professional quotation. Find out the minimum order quantity (MOQ) and lead time for samples and mass production.
Also, take shipping procedures and packaging needs into consideration. Overlays are thin and could easily bend or scratch, and their correct packaging in protective films and flat stacking will provide safety during shipping.
6. Take Communication and Technical Support into Consideration
Good communication is the secret to successful collaboration. Pay attention to how promptly and accurately the supplier responds to technical questions. A good supplier will not merely provide quotations but also advise on materials or coatings that are appropriate for your environmental and design requirements.
They might even propose changes in artwork or thickness for better functionality and cost-effectiveness. Ongoing communication throughout the production process, like sampling updates, inspection reports, and delivery tracking, ensures the project remains timely and to specification.
7. Assess After-Sales Service and Potential for Long-Term Collaboration
After-sales service is an indicator of a supplier’s commitment to long-term partnership. Quality producers provide technical assistance in installation and respond rapidly to issues like adhesive performance or color variation. A stable supplier partnership can also benefit through stable prices, priority in production scheduling, and rapid response to changes in design. For ongoing long-term programs, attempt to sign framework agreements defining quality requirements, frequency of testing, and warranty terms to secure long-term stability.
Choosing the optimal supplier of polycarbonate overlays means achieving a balanced best fit in capability, quality assurance, transparency in pricing, and service reliability. By carefully considering every facet, from materials expertise and production control to communication and after-sales support, you can build a dependable supply chain that will deliver consistent quality, reduce risk, and support your product goals for years to come.
11. Polycarbonate Overlay FAQs
Some frequently asked questions regarding polycarbonate overlay are given below.
1) What is the Life Expectancy of a Polycarbonate Overlay?
The lifespan of a polycarbonate overlay depends on application and exposure conditions. Polycarbonate overlays are extremely durable under normal conditions and would last many years even under severe exposure conditions. Hard-coated overlays will have the ability to extend further life by offering increased scratch resistance.
2) Are Polycarbonate Overlays Outdoor Applicable?
Yes, outdoor use of polycarbonate overlays, and in particular those that are UV-coated, is perfectly fine. They can be used freely for outdoor signs, vehicle graphics, etc., where exposure to the sun is a danger.
3) How Are Polycarbonate Overlays Manufactured?
Polycarbonate overlays are generally manufactured by the die-cut and print method. Material is die-cut to size and shape, and specialty text or graphics printed on the surface. Specialty coatings such as anti-glare or hard coatings can be applied in specific applications for performance.
4) Can Polycarbonate Overlays Be Customized?
Yes, polycarbonate overlays are highly versatile. They can be printed with your own personalized letters, logos, or graphics and die-cut to shapes and sizes to fit your design requirements.
Yes, polycarbonate overlays are highly customizable. They can be printed with unique graphics, logos, or letters, and die-cut to various shapes and sizes to fit particular design requirements.
5) In what ways is Polycarbonate different from Polyester Overlays?
While both polycarbonate and polyester overlays are used on the same types of applications, polycarbonate is more impact strength, optical quality, and robustness. Polyester overlays can be cheaper and chemical resistant to certain chemicals. Based on the special needs of an application, the two can be chosen.
12. Conclusion
Polycarbonate overlays are an economical, yet rugged solution to nearly any application and provide impact, optical, and chemical resistance as well as many other benefits. Polycarbonate overlays have earned the performance and flexibility needed to fulfill your requirement in producing a control panel, membrane switch, or weather-resistant sign.
With what you now know about the various types of polycarbonate overlays and their disadvantages and advantages, you are now able to make an informed decision that will lead you to a successful business.
