Electrical switches that turn circuits on and off, membrane switches enable communication capabilities for many different types of technology products, equipment and systems. These interface utilities can be simple tactile switches that control lighting, touch-screen panels, plastic keyboards or toggle switches.
With membrane keypads, functionality is critical – they must meet your specs, and they must function accurately. From simple switches to complex membrane keypad architecture for instrumentation panels and industrial keypads, NFI Corp has the experience and expertise to bring your project to life.

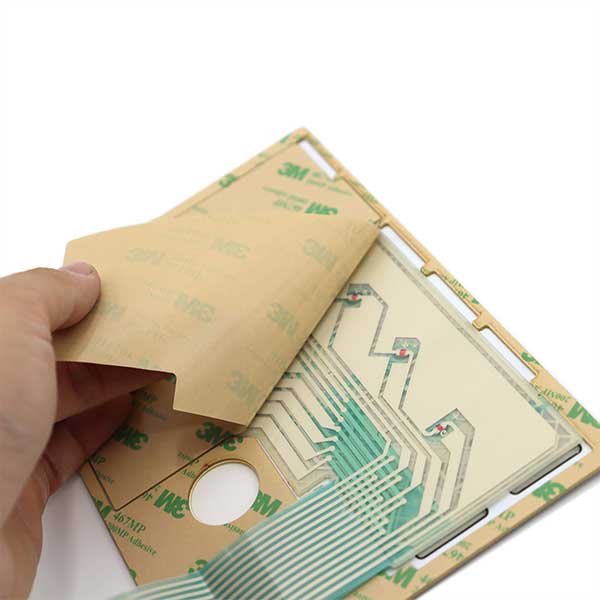

FPC membrane switch ,The full name of flexible printed circuit board film switch is a film switch that prints conductive lines on a flexible substrate. This kind of switch has the advantages of thin, flexible, durable, environmental protection, etc., and is widely used in consumer electronics products such as mobile phones, tablet computers, televisions, audio, medical devices, automotive electronics, drones and other fields.
membrane switch layers include:
Graphic overlay- 0.15/0.20mm
Overlay adhesive-0.1/0.2mm
Top circuit layer-0.1mm
Circuit spacer-0.1/0.2mm
Lower circuit layer-0.1mm
Rear adhesive layer-3M 467 468
Rigid support layer-Custom demand
Materials
The most widely used materials are polycarbonate and polyester.
Polyester :
Highly versatile for embossing
Highly resistant to chemicals
Better durability
For internal and external use
Polycarbonate :
Wide range of surface finishes and thicknesses
More cost-effective
For internal and external us
The material loses its chemical resistance if embossed.
Key Features
Embossing button
Circuit encoding
Hard coat finishes
Tactile feedback
Tinted windows
LED Backlighting
Panel interconnections
Subpanels
Elastomer keypads
FAQ Guide
Compared to the traditional membrane switches with silver paste printed flex as the circuit layer, the FPC membrane switch is quite different. The FPC membrane switch is constructed of Polyimide copper etched FPC circuits with copper flex traces that possess greater durability and stability.
With a remarkable high temperature resistance of up to 280°C, delicate circuitry with 0.5mm output spacing, low electric resistance, high conductivity, and stable performance, this switch offers reliability and durability beyond that of standard membrane switches. It also allows for soldering active and passive components directly into the switch configuration, further extending its usefulness and applicability.
1. What is an FPC Membrane Switch?
An FPC membrane switch is a human-machine interface that combines a tactile switch with a flexible circuit. They are extremely flexible in nature and are utilized in so many various forms of electronic goods to give a convenient interface.The construction of the FPC makes the switch tough as well as flexible, hence ideal for applications wherein space and weight would be significant issues.
2. How Does an FPC Membrane Switch Operate?
An FPC membrane switch operates through the creation and disruption of a circuit. Typically, they consist of several layers, including a top graphic overlay layer, an adhesive layer, a spacer layer, the FPC layer, and a bottom adhesive layer. When a user presses a key, it comes into contact with the underlying circuit, creating the circuit and sending a signal to the addressed device.
3. What are the principal components of an FPC membrane switch?
These advanced switches consist of principal components carefully designed to offer smooth performance and a user-friendly interface. From the top graphic overlay with symbols and keys to the FPC layer with the important printed circuits, each component plays an important role in offering a superior user experience.Let’s delve deeper into the intricate layers that make up an FPC membrane switch and discover the magic they bring to your devices.
1) Top Graphic Overlay
This layer provides a visual interface for the user, showing the keys and symbols.
2) Adhesive Layer
This secures the graphic overlay to the FPC layer.
3) Spacer Layer
This layer helps keep the top layer separate from the bottom circuit layer, preventing accidental activation.
4) FPC Layer
The core functional part of the switch contains the printed circuits that close the electrical circuit when a key is pressed.
5) Bottom Adhesive Layer
This layer secures the entire assembly of the device or substrate.
4. What Are the Advantages of FPC Membrane Switches?
Looking to enhance your product’s performance and user experience? FPC membrane switches introduce a world of advantages that differentiate them from rigid circuits. From being flexible and durable to compact size and customizability, FPC membrane switches are the ideal solution for applications demanding reliability and innovation.
1) Flexibility
The primary advantage of FPC membrane switches is their flexibility, making them suitable for numerous applications where rigid circuits would be ineffective.
2) Durability
FPC switches can withstand extreme conditions, including varying temperatures, humidity, and mechanical stress.
3) Space-Saving
The thin profile of FPC membrane switches makes them ideal for devices where space is limited.
4) Light Weight
They are significantly lighter than their rigid counterparts, contributing less weight to the overall device.
5) Customization
FPC membrane switches’ design and geometry can easily be engineered to meet desired application requirements.
5. What are common uses of FPC Membrane Switches?
These new elements have infiltrated a wide range of industry, from consumer goods and medical devices to controls, industrial applications, and automobiles, and, yes, even aerospace technology.
From enhanced functionality of medical equipment, enhanced user experience in consumer devices to delivering high-precision control in mission-critical aerospace use, FPC membrane switches are resistant to abuse and long-lasting in varied industry application.
1) Medical Devices
Used in various diagnostic and monitoring equipment due to their durability and reliability.
2) Consumer Electronics
Commonly found in remote controls, gaming consoles, and handheld devices.
3) Industrial Controls
Employed in machinery and equipment control panels for their robustness and ease of use.
4) Automotive
Integrated into dashboards and control systems for a sleek and functional interface.
5) Aerospace
Applied in cockpit instruments and other control systems of prime importance because of their lightness and space efficiency.
6. How to Design an FPC Membrane Switch?
Starting out on the design journey of an FPC membrane switch involves adopting a strategic methodology to achieve the best functionality and performance.
By going through a precise process of requirement analysis, schematic design, selection of materials, building of a prototype, extensive testing, large-scale production, and hassle-free installation, you can create an error-free and efficient membrane switch that is tailored to the special needs of your application. Join us in the realm of innovative design and bring your concept into existence with precision and perfection.
1) Requirement Analysis
Begin by understanding the specific needs of the application, including the interface layout, type of user interaction, and environmental conditions.
2) Schematic Design
Create a circuit design that meets the electrical requirements. This should include the placement of keys and their connections.
3) Material Selection
Choose materials that can withstand the operating environment. This includes selecting appropriate adhesives, circuit materials, and overlays.
4) Prototype Development
Develop a prototype to test the design. This step allows you to make any necessary adjustments before mass production.
5) Testing
Conduct rigorous testing to ensure the switch performs under various conditions, including pressure, temperature, and humidity tests.
6) Production
After finalizing the design and its test, proceed with mass production so that proper quality control procedures are implemented.
7) Installation
Finally, the FPC membrane switch is mounted into the end product such that it fits correctly and operates as required.
7. FPC Membrane Switch Troubleshooting and Common Problems
Annoying as it is to experience issues with your FPC membrane switch, fear not, since addressing common problems through troubleshooting can lead to successful fixes. Sticky keys, erratic operation, wear, and adhesive failure, all are issues that can be fixed by aggressive inspection and specially targeted remedial action. By requiring circuit breaks, environmental condition testing, maintenance testing, and adhesives compatibility testing, you can make your FPC membrane switch operate smoothly and last longer, which will allow you to deliver a better user experience. Let’s fix these issues together and return your switch to optimal performance.
1) Non-Responsive Keys
If certain keys are not working, check for circuit breaks or poor connections. This can often be resolved by inspecting the FPC layer for any visible damage.
2) Intermittent Functionality
Sporadic functioning of the switch could be due to environmental conditions like temperature or humidity. Use materials for it that are appropriate to operating conditions.
3) Wear and Tear
Wear can develop over time in the graphic overlay and other layers, especially where usage is high. Regular inspections and maintenance will ensure that the switch’s life is extended.
4) Adhesive Failure
If the switch is peeling off or not sticking properly, verify that the adhesive used is appropriate for the substrate material.
8. How Do You Keep an FPC Membrane Switch?
To ensure the life and top performance of your FPC membrane switch, a preventive maintenance practice is necessary. By observing easy but practical habits such as regular cleaning using mild cleaners, keeping it from being exposed to aggressive environments, making occasional inspections for wear and tear, and discouraging abusive handling by operators, switch life can be prolonged and the likelihood of future problems minimized.
Remember that a small amount of maintenance will go a long way in making your FPC membrane switch continue to work and be reliable.Let’s keep your switch in top shape for error-free operation and enhanced user satisfaction.
1) Regular Cleaning
Keep the surface clean and free of debris. Use non-abrasive cleaning agents to avoid damaging the overlay.
2) Avoid Extreme Conditions
Although FPC membrane switches are durable, avoiding excessive exposure to extreme temperatures, humidity, and mechanical stress can extend their life.
3) Periodic Inspection
Regularly inspect the switch for signs of wear and tear, adhesive failure, or circuit damage. This allows for early intervention before any major issues arise.
4) Gentle Use
Request users to apply suitable pressure when they switch on the switch in order not to exert excess pressure on the layers and circuits.
9. How to Choose the Right FPC Membrane Switch Manufacturer?
When selecting the right FPC membrane switch manufacturer for your project, it’s essential to consider key factors that can impact the quality and success of your product. Amongst these, top priority is to those manufacturers which possess vast experience, widely acknowledged reputation of competence, and previous record in the supply of good-quality FPC membrane switches.
By choosing a maker that is really good at those things, you can be assured of seamless collaboration and the high-quality, bespoke FPC membrane switches that precisely meet your special specifications and requirements. Let us collaborate with a maker that gets your vision and quality standards.
1) Experience and Expertise
Look for manufacturers with a proven track record in producing high-quality FPC membrane switches. Check their portfolio and customer reviews.
2) Customization Capabilities
Ensure the manufacturer can customize the switch to meet your specific requirements, including layout, materials, and performance specifications.
3) Quality Assurance
Quality control needs to be rigorous. Ensure the manufacturer has robust quality assurance processes in place, including testing for electrical and environmental performance.
4) Certifications
Request certifications to demonstrate that the manufacturer has been following the industry standards, such as ISO certification.
5) Customer Support
5-star customer support can be invaluable, especially at the design and proto-stage. Verify that the manufacturer offers a reliable support and after-sales service.
10. FPC Membrane Switch FAQs
Below are some frequently asked questions on FPC Membrane Switches:
1) What is an FPC Membrane Switch?
FPC Membrane Switch is a tough, durable human-machine interface which functions by disconnecting electric circuits upon the user pressing keys.
2) What are the main components?
Top graphic overlay, adhesive layer, spacer layer, FPC layer, and bottom adhesive layer.
3) What are its advantages?
Lightweight, space-saving, durability, flexibility, and customizable
4) Where is it commonly used?
Consumer electronics, automotive, industrial controls, aerospace, and medical devices.
5) How is it designed?
Through requirements analysis, schematic design, material selection, prototype development, testing, and production transition.
6) What issues might arise and how to troubleshoot?
Adhesive failure, wear and tear, intermittent functionality, and non-responsive keys. These can be minimized with regular inspection and maintenance.
Look for experience, customization capabilities, strong quality assurance, relevant certifications, and good customer support.
11. Conclusion
FPC membrane switches are a cutting-edge and versatile technology highly adaptable to any kind of application. Having their components, advantages, common applications, designing, and maintenance is significant in a bid to enhance the utilization of these versatile interfaces. Choosing a reputable producer also assures your switches’ consistency and durability, providing a seamless user experience for your end products.
